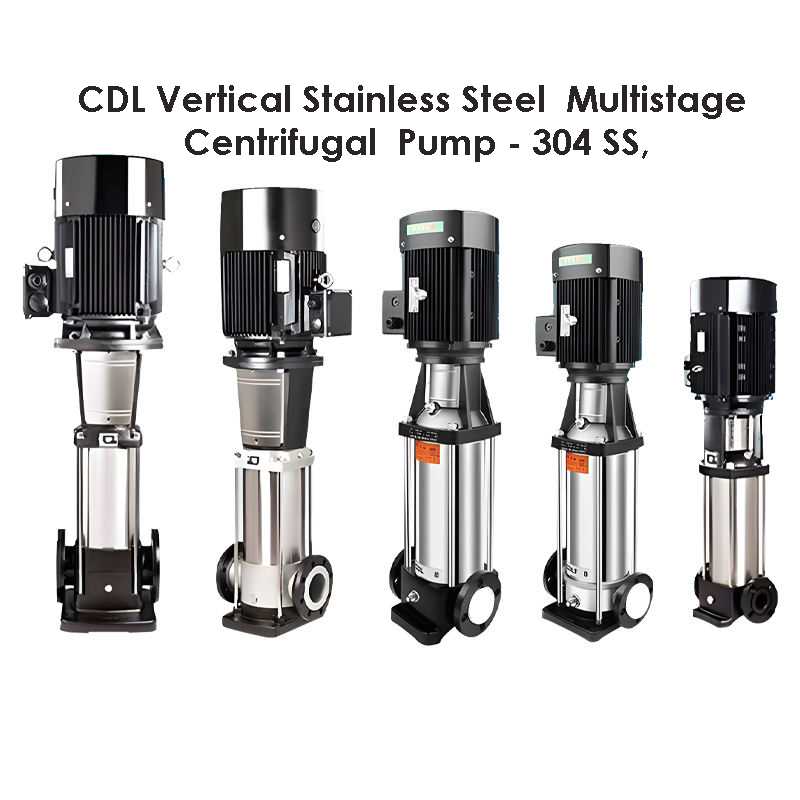

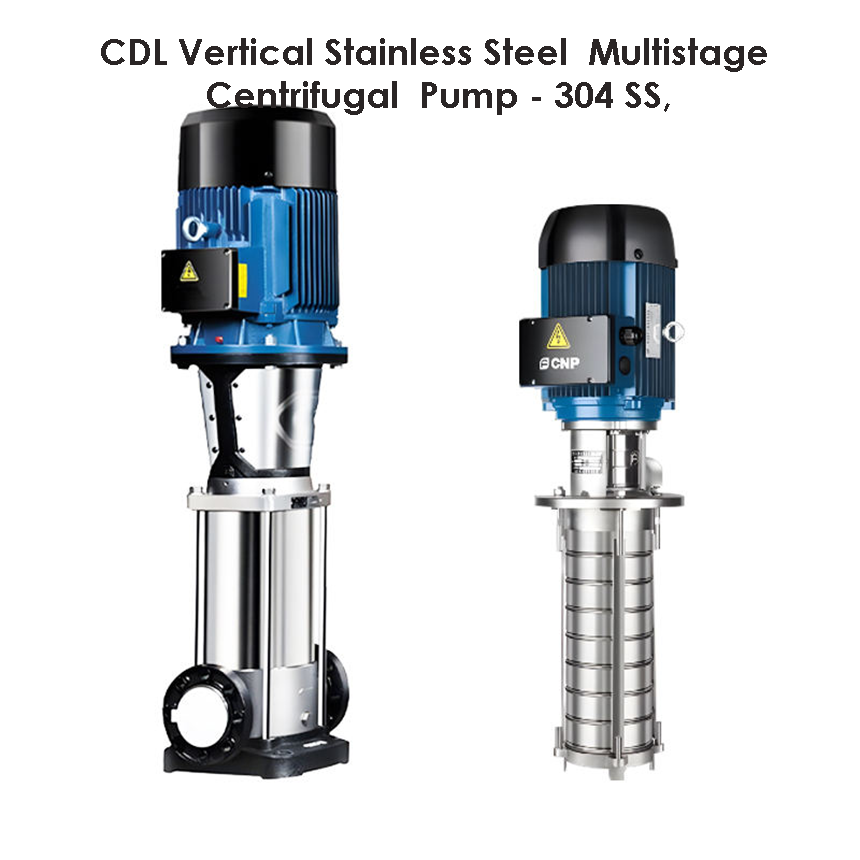

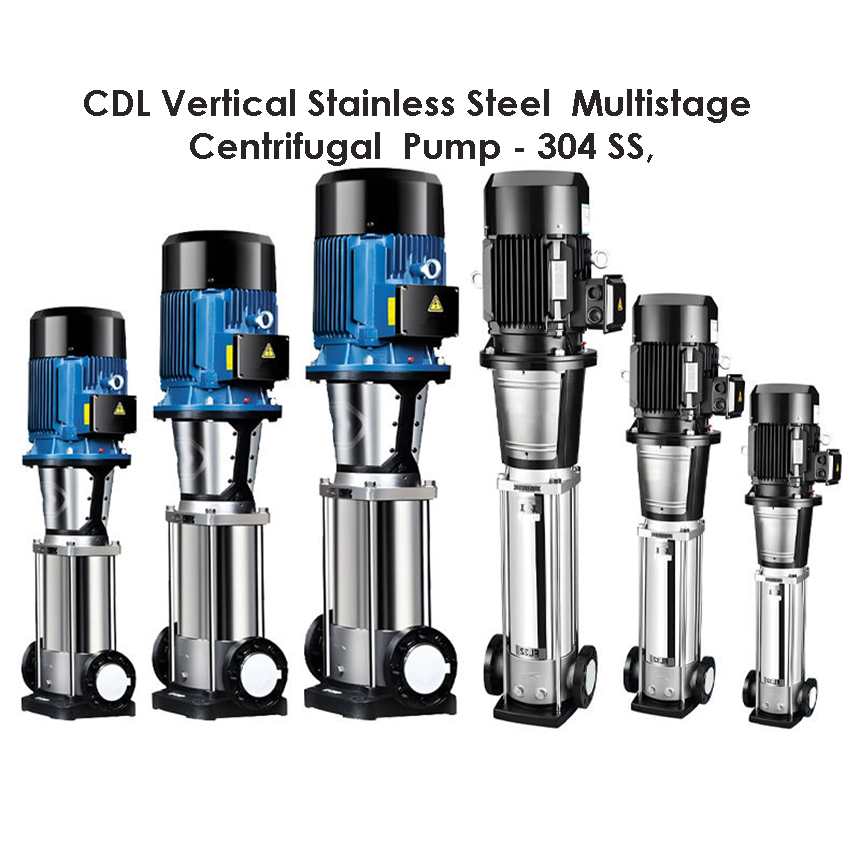

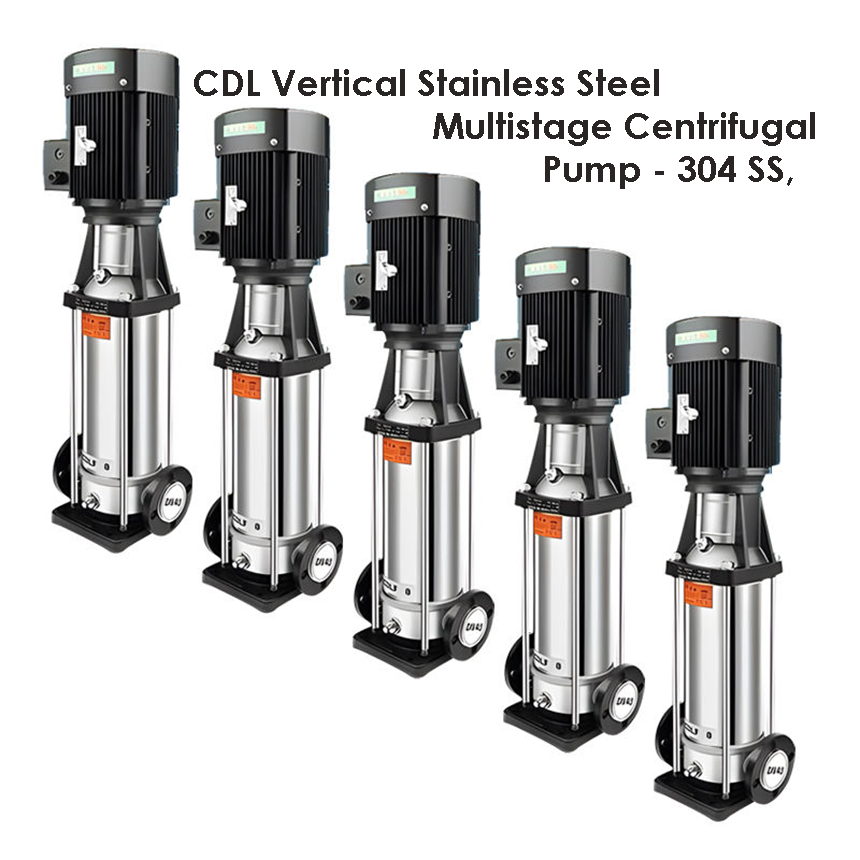

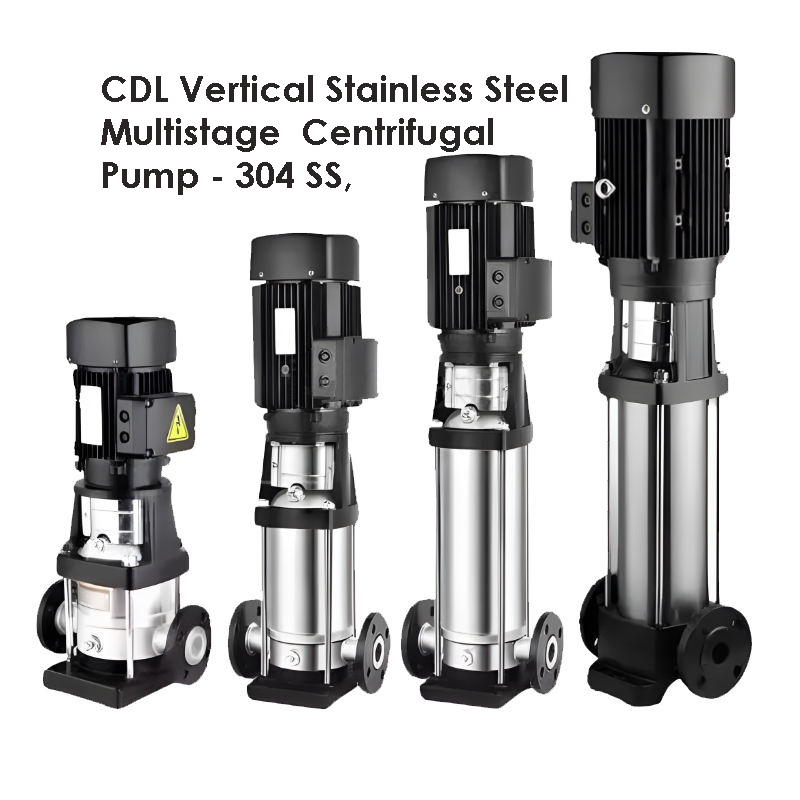

CDL Vertical Stainless Steel Multistage Centrifugal Pump - 304 SS

Description :

• Payment: T/T, L/C or Paypal
• OEM/ODM:
• Available MOQ: 1Set
• Model: CDL Series
• Lead Time: 7-14 days
• Certification: , RoHS, ISO9001, ASTM 25B,  AISI 304

Data sheet or Brochure Download :

You Tube VDO :

• CDL Vertical Stainless Steel Multistage Centrifugal Pump - 304 SS, High Pressure Booster for High-Rise Building Water Supply

Pump :

• CDL / CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a stan-
  dard clectric motor. The motor output shaft dircctly con- nects with the pump shaft through a coupling.
• The pres- sure-resistant cylinder and flow passage components are fixed between pump head and inlet &coutlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equ- ipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

Motor :

1. Full-cnclosed air-blast two-polc standard motor
2. Protection class: IP55
3. Insulation class: F

Standard voltage :

1. 50Hz: I X 220-230 / 240V
2. 3 x 200-220 / 380V
3. 3 x 220-240 / 380-415V
4. 3 x 380-415V

Operation conditions :

1. Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
2. Liquid temperature:
3. Normal temperature type: -15"C~+70'0,
4. Hot water type: -15 C〜+120"C
5. Ambient temperature: up to +40"C
6. Altitude:up to 1000m
